Click link for larger view in new browser window

iSCSI diagram


iSCSI diagram

Click link for larger view in new browser window

iSCSI Bridge Solutions
One of the fastest and most cost-effective iSCSI bridge solutions available, the iS500 Bridge Family can be used to locate parallel SCSI storage at any distance via an Ethernet port using iSCSI protocol.

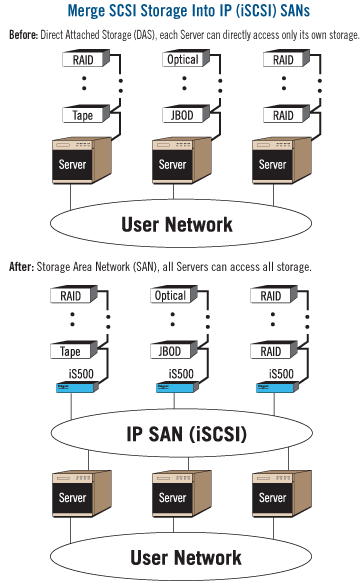

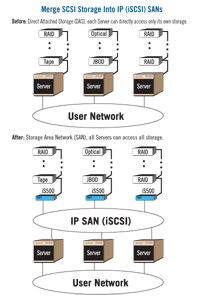

If you have an IP SAN (Internet Protocol Storage Area Network), Paralan's iS500 Family of iSCSI Bridges will easily connect your parallel SCSI devices to an IP SAN and merge “Direct Attached Storage” (DAS) systems and devices into networked iSCSI storage environments.

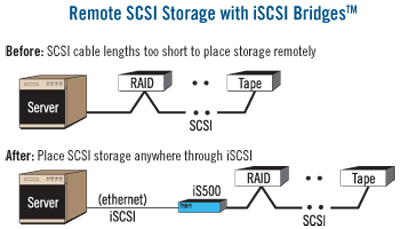

If you do not have a SAN, Paralan's iS500 Family of iSCSI Bridges will easily and inexpensively locate storage and backup SCSI devices anywhere for disaster recovery or remote backup - yards, meters, kilometers, or miles - the distance is unlimited!


iSCSI board

iSCSI box

iSCSI rack

The iS500 Family is available in three form factors:

Each Paralan iS500 Bridge boasts the following exceptional features:

Built-in Graphical Interface addressable by any web browser through the Gigabit Ethernet port.Easy installation including self-contained initial IP address and the capability to be used in DHCP over TCP/IP environments.Automatically detects every parallel SCSI device connected to the 68-pin SCSI interface upon power up. Field upgradeable to adapt to future expansions of the iSCSI specifications, and compliant with iSCSI and SCSI interface standards. At-a-Glance status LEDs for SCSI Bus Activity, Self Diagnostics, Power, Gigabit Ethernet Link Status and Gigabit Ethernet Activity. Utilizes a dedicated 833 MHz 32-bit processor for maximum iSCSI and SCSI throughput. Embedded Adaptec Ultra160 SCSI controller chip providing state of the art, reliable control of all SCSI devices. The iS500 Series supports LVD/MSE and HVD SCSI.

In addition, the iS500 Family includes the following features:

  • Transparent to S/W, H/W and Operator
  • Ultra160 LVD and HVD Models
  • Plug and Go Installation
  • Supports all SCSI Device Types
  • FCC, UL, cUL, CE Compliant

TECHNICAL SPECIFICATIONS:

  iS521 LVD/MSE & iS531 HVD Board iS521 LVD/MSE & iS531 HVD Board iS521 LVD/MSE & iS531 HVD Board
Environmental Relative Humidity:
Operating Temp:
Storage Temp:
0 - 95% non-condensing
0 - 50 degrees C
-25 to +75 degrees C
0 - 95% non-condensing
0 - 50 degrees C
-25 to +75 degrees C
0 - 95% non-condensing
0 - 50 degrees C
-25 to +75 degrees C
Weight
Unit Weight:
Shipping Weight:
1 pound (0.5 kg)
4 pounds (1.8 kg)
3 pounds (1.3 kg)
8 pounds (3.6 kg)
10 pounds (4.5 kg)
20 pounds (9.0 kg)
Physical Dimensions Height:
Width:
Length (depth):
1.2 in (30.5 mm)
5.3 in (134.1 mm)
8.5 in (215.9 mm)
1.5 in (38.6 mm)
5.6 in (141.4 mm)
8.9 in (224.8 mm)
1U, 1.75 in (43.7 mm)
16.7 in (424.9 mm)
10.0 in (254.0 mm)
SCSI Connection: 68 pin High Density
Alt 3 "P" Connector
(Shielded)
68 pin High Density
Alt 3 "P" Connector
(Shielded)
68 pin High Density
Alt 3 "P" Connector
(Shielded)
SCSI Communication Type:

Length:
SCSI Termination:
iS521 Parallel Ultra160
iS531 Parallel Ultra HVD
Max 82 ft (25 m)
iS521 LVD Multimode
iS531 HVD
iS520 Parallel Ultra160
iS530 Parallel Ultra HVD
Max 82 ft (25 m)
iS520 LVD Multimode
iS530 HVD
iS550-L Parallel Ultra160
iS550-H Parallel Ultra HVD
Max 82 ft (25 m)
iS550-L LVD Multimode
iS550-H HVD
iSCSI Connection Type:
Length point to point:
Length Networked:
IP Communication:
iSCSI throughput:
Cat 5e, Cat 6 copper
328 ft (100 m) direct
Worldwide with switches
TCP/IP (DHCP or static IP)
Max Wire Speed*
Cat 5e, Cat 6 copper
328 ft (100 m) direct
Worldwide with switches
TCP/IP (DHCP or static IP)
Max Wire Speed*
Cat 5e, Cat 6 copper
328 ft (100 m) direct
Worldwide with switches
TCP/IP (DHCP or static IP)
Max Wire Speed*
Configuration Changes:
Field Upgrades:
Via built-in web interface
Via built-in web interface
Via built-in web interface
Via built-in web interface
Via built-in web interface
Via built-in web interface
Power Requirements Power Connection:
Voltage:
Current:
4 pin standard power
5 VDC + /- 5%
iS521 4.7 Amps DC
iS531 5.5 Amps DC
IEC 60320 C13
100-240 VAC, 50-60 Hz
1.7 Amps AC at 120 VAC
IEC 60320 C13
100-240 VAC, 50-60 Hz
1.7 Amps AC at 120 VAC
Warranty:
Safety Approvals:
EMI/RFI:
2 yr limited warranty
UL, cUL, TUV, CE Compliant
FCC Class B, CE Compliant
2 yr limited warranty
UL, cUL, TUV, CE Compliant
FCC Class B, CE Compliant
2 yr limited warranty
UL, cUL, TUV, CE Compliant
FCC Class B, CE Compliant

(* throughput may vary depending on server and device types)


iS500 brochure iS500 Family Brochure - pdf version
