LVD/MSE TO HVD SCSI CONVERTER

This unit is no longer available, use MH32A and MH33A

  • Convert Between LVD or Single-ended and HVD
  • Extend SE or LVD Bus Length
  • Isolate HVD Segments of a SCSI bus
  • Targets and initiators may be located on both sides of the Expander
  • The models are backward compatible with older versions of SCSI
  • Does not consume a SCSI ID

  • Stand-alone and Board-level Versions:
The board-level version Model MH17 is sized to fit in a standard 5.25 drive bay!
Paralan's models MH16 / MH17 let you add LVD devices into an existing High Voltage Differential (HVD) system, or utilize existing HVD devices in an LVD/MSE or single-ended system. The Converter may also be used to extend the SCSI bus length of an LVD/MSE system. All this is accomplished without any impact on SCSI protocol or loss of data thruput!

Have a HP LTO-Ultrium Drive? Our Model MH19 can convert a HP Ultrium Tape Drive to HVD

Paralan's models MH16A / MH17A let you add LVD devices into an existing High Voltage Differential (HVD) system, or utilize existing HVD devices in an LVD/MSE or single-ended system. All this is accomplished without any impact on SCSI protocol or loss of data thruput.

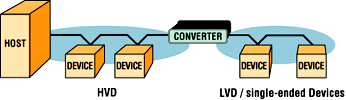

Using LVD/MSE Devices in an Existing HVD System

SCSI protocol allows all SCSI implementations i.e. LVD/SE/HVD to communicate on the same bus domain. This is accomplished through the use of the DIFFSENSE signal. However, the performance level is reduced by the slower devices on each segment. This huge penalty is avoided by using a type of SCSI Expander usually referred to as a Converter. As an example; a SCSI converter is placed between an LVD device and an HVD device. This isolates the different versions of SCSI into two segments allowing both the LVD devices and the HVD devices to function at their full thruput.

Using LVD/MSE Devices in an Existing HVD System!

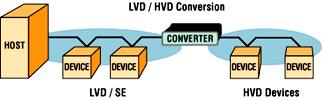

Using HVD (High Voltage Differential) Devices in an LVD/MSE System

HVD Devices can be added to an LVD/MSE or Single-ended system simply by adding a LVD/MSE to HVD Converter, attaching the HVD SCSI segment to the HVD port of the Converter. The Converter will not consume a SCSI ID, and the system will operate with no compromise of thruput.

Using HVD (High Voltage Differential) Devices in an LVD/MSE System!

Mixing SCSI Device Types

Multimode LVD SCSI will automatically change to Single-Ended (SE) if an SE device is on the same bus segment. However, neither LVD nor SE SCSI can directly communicate with HVD SCSI. A Model MH16A or MH17A LVD/MSE to HVD SCSI Converter enables this type of communication by converting the LVD or SE SCSI to HVD or vice versa. The presence of a SCSI Converter will not decrease data thruput.

If the application in which you want to use an LVD/MSE to HVD converter has an Ultra320 LVD host adapter with Ultra320 drives connected to it, you should use the Model MH32A or MH33A. In all other LVD or SE to HVD applications the Model MH32A, MH33A, MH16A or MH17A may be used.

Paralan Models MH16A and MH17A LVD/MSE to HVD SCSI Converters are completely compatible with all devices that conform to the full ANSI X3T10 standards through SPI-3 (Ultra160). They are available either as stand-alone units utilizing line voltage, or as board-level units for installation in other equipment.

Isolation for Hot Swapping

The logical isolation between the two sides of a SCSI Converter allows a device on one side to be disconnected without disturbing the other side.

Narrow/Wide Conversion

The MH16A and MH17A (Wide) models may be used to interconnect Narrow SCSI devices on one side with Wide SCSI on the other side.

PDF version of this data sheet.

Specifications:

Environmental
Relative Humidity: 0 - 95% non-condensing
Operating Temperature: 0 - 50C
Storage Temperature: –25 to +75C
Power Requirements

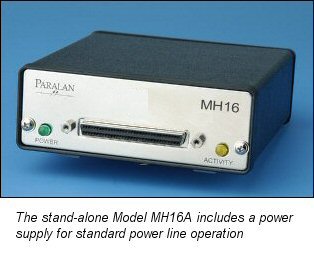

Stand-alone units (MH16A):
Voltage: 100 - 260 VAC, auto select
Frequency: 50 - 60 Hz
Board-level units (MH17A):
Voltage: 5 V dc 5%
Current: 1.5 A max
Safety Approvals
UL, CSA, TUV, CE
EMI/RFI
FCC Class A, CE
SCSI Connections
MH16A, MH17A: SCSI-3 68-pin High-Density female Alt-3 “P” Connector
Communication
Sustained Data Throughput:
Limited by HVD bus to 40 MBytes/sec (16-bit)
Warranty
Two year limited warranty
Weight:
MH16A: approx. 12 oz (0.34 kg)
Shipping weight, approx. 4 lb (1.8 kg)
MH17A: 3.5 oz (99 g)
Shipping weight, approx. 2 lb (1 kg)
Physical Size (MH16A)
Height: 1.6 in. (41 mm)
Width: 4.1 in. (104 mm)
Depth: 4.5 in. (114 mm)
Board-Level Version Dimensions:
Overall board dimensions 4.00 x 3.88 in. (101.6 x 98.5 mm)
See PDF drawing for details.

Ordering Guide:

Model Numbers SCSI Product Description
Stand-alone Board Version
MH16A MH17A SCSI Wide LVD/MSE to HVD Converter (16-bit)
EB1
Rack Mount Expander Box (rack mount up to 3 SCSI Expanders)
2811
5-1/4" Half Height Drive Bay Mounting Bracket & Faceplate for MH17A
SQxx
SCSI Quiet Cable™   (specify length)
